T1-2000AC
[Single port full color LED controller]
- (false) 2-channel output, each
channel carries 2048 points of large load, and the maximum load of a
single controller is 4096 points.
- Support high-voltage, cascade and
two hybrid synchronization modes.
- Play built-in effects without SD
card. There are 99 Kinds of built-in effects, and support full
broadcast, unicast and anycast functions.

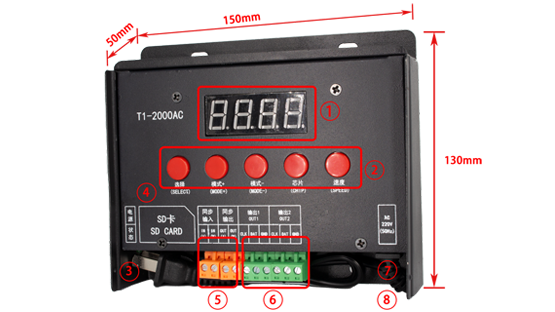

- The LED digital tube is used to
display the controller information, which is resistant to low
temperature and is not affected by ambient temperature.
- The controller provides 5 entity
keys for setting various parameters, which is simple and reliable.
- The design of pull-out rainproof
shell is especially suitable for outdoor engineering construction.
- It can be equipped with our
"gps-sync synchronization controller" for cluster synchronization.
- Working voltage：AC220V
- Number of loaded lamps：2*2048
- File format：FAT32
- File type：*.led
- Size：150*130*50mm
- Output port：2
- Rated power：<1W< /li>
- Weight：750G
Connection between controller and lamp
Synchronous line cascade synchronization
